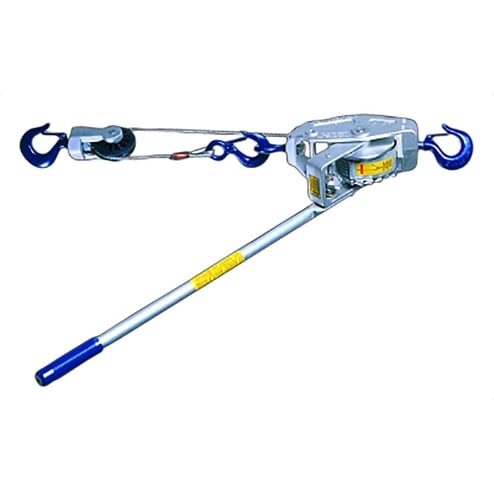

Cable Ratchet Hoist-Winch, 1-1/8 Tons Capacity, 20 ft Lifting Height, 83 lbf


Product Description

Exclusive drum anchor - swaged ball shank terminal locks cable securely in drum and allows for full extension of cable. Proprietary reversible handle - always a downward pull, switches positions in seconds. Cable end has hydraulically crimped copper sleeve. Interlocking pawl system will not slip. Self-storing aircraft cable. Self lubricating bearings.

Specifications

Cable Length [Nom] 21 ft
Cable/Wire Size [Nom] 3/16 in
Distance Between Hooks [Min] 16 in
Frame Material Aluminum Alloy
Handle Length [Nom] 30 in
Lifting Height/Take-Up [Nom] 20 ft
Material Aluminum Alloy
Mounting Hooks
No. of Falls 1
Pull Force [Max] 83 lbf
Type Small Frame
Wt. 9.25 lb
Wt. Cap. [Nom] 1-1/8 tons
