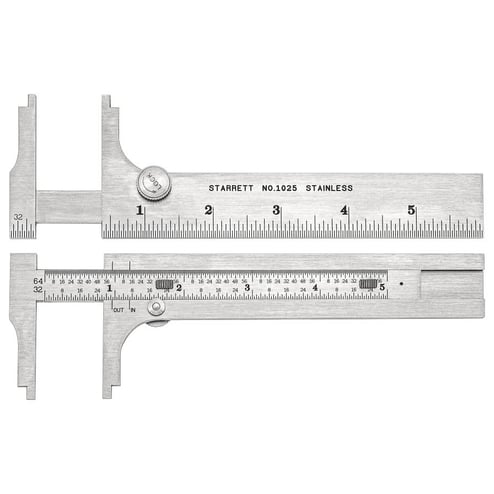

1025 Series Pocket Slide Caliper, 0 to 6 in, Stainless Steel


Product Description

Straight measuring surface for outside measurements, rounded nibs for inside or hole measurements. Knurled clamp screw with left hand thread for one hand operation. Compact, pocket size. Knurled thumb pieces activate the slide. Slide stop prevents disassembly of tool. For quick and accurate outside and inside measurements.

Specifications

Body Material Stainless Steel
Finish Polished Steel
Height [Nom] 0.7 in
Inside Jaw Depth .75 in
Inside Range Min - Max 1/4 - 5 in
Length [Nom] 6.6 in
Lower Jaw Length 1-3/8 in
Lower Jaw Type Nib Jaw
Material Steel
Measurement Type Inside Dimension; Outside Dimension
Measuring System Inch
Outside Range Min - Max 0 to 4.75 in
Quantity 1 per pack
Tip Material Stainless Steel
Type Nib Caliper
Upper Jaw Length 1-3/8 in
Upper Jaw Type Nib Jaw
Width [Nom] 2.6 in
Wt. 0.3 lb
