11-Ton Manual-Hydraulic Knockout Kit, Includes Ram/Hand Pump/Slug-Buster® 1/2 in to 2 in


Product Description

Compact, lightweight design for portability and fast, easy one-person operation. Knurled edge on punches for better grip. New die design optimized for widest range of materials and drivers. Laser markings for quick part identification. Alignment markings for improved accuracy. Knockout set is easy to thread, draw studs with dog point tip helps eliminate cross-threading. Hex key access for easy removal from tool. The hand pump model or foot pump model option allows for a variety of operation orientations.

Specifications

Applicable Materials 10 ga Mild Steel; 12 ga Stainless Steel; Aluminum; Brass; Copper; Fiberglass; Plastics
Capacity Wt. [Max] 22000 lb
Conduit Size [Max] 1/2 in to 2 in
Cutting Cap. [Max] 2 in
Cutting Diam [Max] 2 in
Cutting Diam [Min] 1/2 in
Hole Size [Nom] 0.89 in to 2.42 in

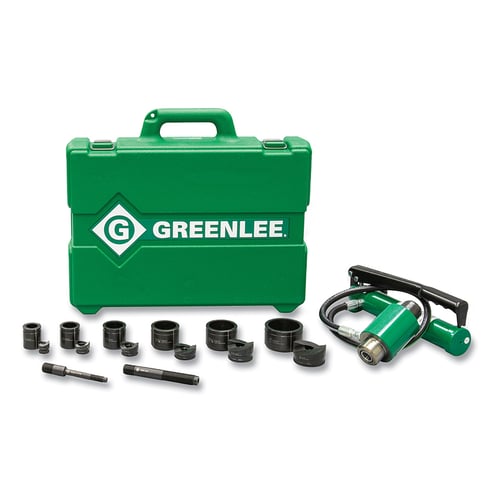

Includes Hydraulic Ram (746A); Hand Pump (767); 1/2 in to 2 in Conduit Size Slug-Buster® Punches; 1/2 in to 2 in Conduit Size Dies; 7/16 in Hydraulic Draw Stud; 3/4 in Hydraulic Draw Stud; Carrying Case (KCC-7672)
