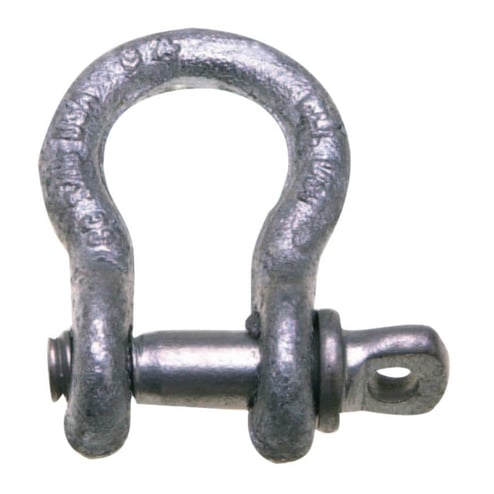

C-419-S Series Anchor Shackle, 2 in Opening, 1-1/4 in Bail Size, 12 t, Screw Pin Shackle
C-419-S Series Anchor Shackle, 2 in Opening, 1-1/4 in Bail Size, 12 t, Screw Pin Shackle
SKU: 193-5412005
Manufacturer Part Number: 5412005
Product Description
Specifications
| Bail Size | 1-1/4 in |
| Finish | Self Colored |
| Inner Length [Nom] | 4 1/2 in |
| Inner Width [Nom] | 3-1/4 in |
| Locking Type | Threaded Pin |
| Material | Drop-Forged Carbon Steel |
| Opening Size [Nom] | 2 in |
| Pin Size [Nom] | 1-3/8 in |
| Type | Screw Pin Shackle |
| Working Load Limit | 12 t |
