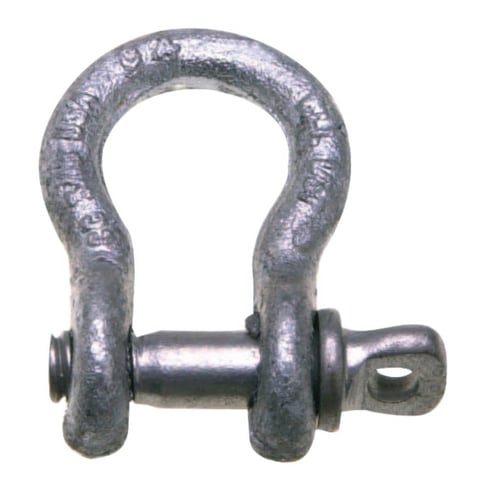

419 Series Anchor Shackle, 1-1/16 in Opening, 5/8 in Bail Size, 3-1/4 t, Screw Pin Shackle
419 Series Anchor Shackle, 1-1/16 in Opening, 5/8 in Bail Size, 3-1/4 t, Screw Pin Shackle
SKU: 193-5411035
Manufacturer Part Number: 5411035
Product Description
Specifications
| Bail Size | 5/8 in |
| Finish | Galvanized Zinc |
| Inner Length [Nom] | 2-7/16 in |
| Inner Width [Nom] | 1-9/16 in |
| Locking Type | Threaded Pin |
| Material | Drop-Forged Carbon Steel |
| Opening Size [Nom] | 1-1/16 in |
| Pin Size [Nom] | 3/4 in |
| Type | Screw Pin Shackle |
| Working Load Limit | 3-1/4 t |
