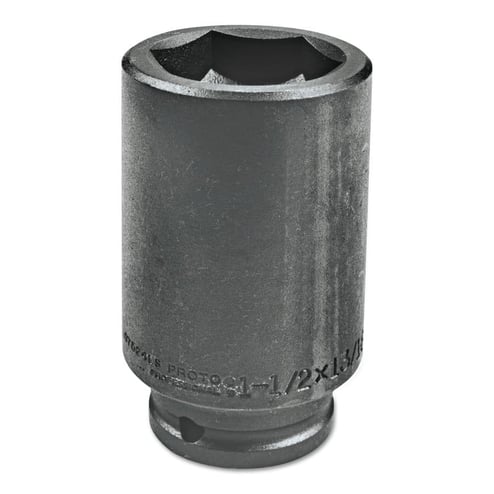

Budd-Wheel Deep Impact Sockets, 3/4 in Drive, 1 1/2 in; 13/16 in, 4 Points


Product Description

Chamfered service ends. Optimized socket wall thickness. Thru hole and groove accept retaining ring and pin, when securing to power tool. Double opening.

Specifications

Drive Size [Nom] 3/4 in
Drive Type Square
Finish Black Oxide
Head Width [Nom] 2 1/4 in (opening side); 1 5/8 in (drive side)
Locking Type Pin
Material Forged Alloy Steel
Measuring System Inch
No. of Points 4
Opening Size [Nom] 1 1/2 in; 13/16 in
Overall Length [Nom] 4 in
Tip Type Box
Wt. 2.96 lb
