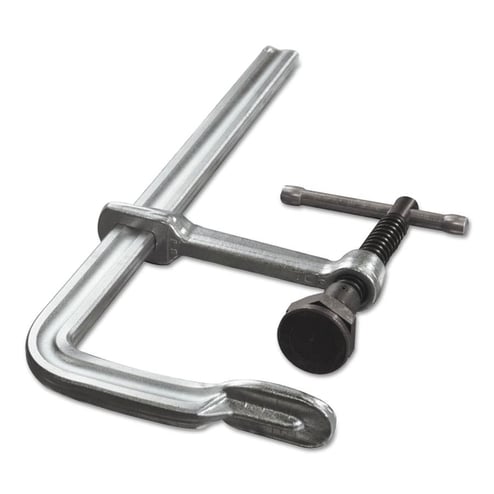

classiX™ Heavy Duty Pad Clamp, 16 in, 5 1/2 in, 3,660 lb
classiX™ Heavy Duty Pad Clamp, 16 in, 5 1/2 in, 3,660 lb
SKU: 013-GSM40
Manufacturer Part Number: GSM40
Product Description
Specifications
| Bar Thickness | 1 3/16 in |
| Bar Width | 19/32 in |
| Body Finish | Satin |
| Body Material | steel |
| Capacity [Nom] | 16 in |
| Handle Material | Tempered Steel |
| Handle Type | Sliding Pin T-Handle |
| Height [Nom] | 1.578 in |
| Length [Nom] | 21.032 in |
| Load Cap. [Nom] | 3,660 lb |
| Locking Type | Thread Locking |
| Material | Steel |
| Opening Size [Max] | 16 in |
| Spindle Diam | 0.78 in |
| Style | Heavy-Duty |
| Throat Depth [Nom] | 5 1/2 in |
| Width [Nom] | 8 1/4 in |
| Wt. | 7.5 lb |
