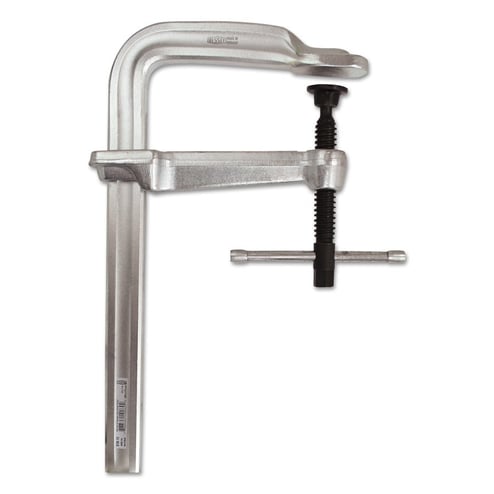

Heavy-Duty L-Clamps, 12 in Cap., 7 in Throat, 4,880 lb Load


Product Description

Spatter-resistant. Drop-forged steel. Heat treated, high carbon Acme threaded screw – tempered and quenched to give greater loading capacity and longer service life. The high-strength sliding pin T-Handle is sized according to the clamp’s capability.

Specifications

Bar Thickness 1 37/64 in
Bar Width 25/32 in
Body Material steel
Capacity [Nom] 12 in
Handle Finish Electro-Galvanized
Handle Material Tempered Steel
Handle Type Sliding Pin T-Handle
Load Cap. [Nom] 4,880 lb
Locking Type Thread Locking
Material Steel
Opening Size [Max] 12 in
Spindle Diam 0.85 in
Spindle Material High Carbon Steel
Style Heavy-Duty
Throat Depth [Nom] 7 in
Wt. 12 lb
