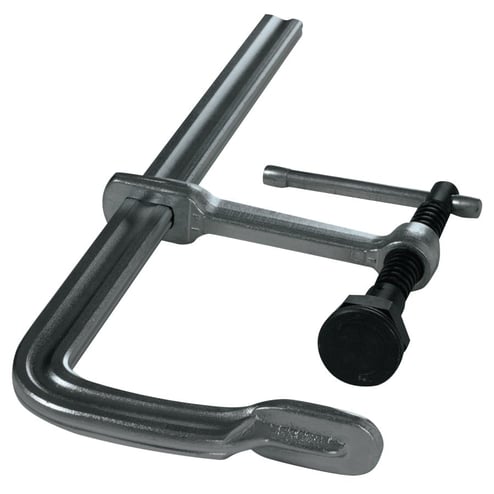

Medium Duty L-Clamps, 8 in, 4 3/4 in Throat, 1,800 lb Load Cap

013-SGL8

Product Description

Heavy duty pad. Forged sliding arm is made from tempered, drop-forged steel for long service life. High strength electro-galvanized sliding pin T-handle – rounded ends for comfort and size engineered to load capacity. Heat treated, high carbon Acme threaded screw – tempered and quenched to give greater load capacity with longer service life. Spatter resistant.

Specifications

Bar Thickness 33/64 in
Bar Width 1 1/16 in
Body Material steel
Handle Type Sliding Pin T-Handle
Load Cap. [Nom] 1,800 lb
Opening Size [Max] 8 in
Spindle Diam 0.7 in
Style L-Clamp
Throat Depth [Nom] 4 3/4 in
Wt. 4 lb
