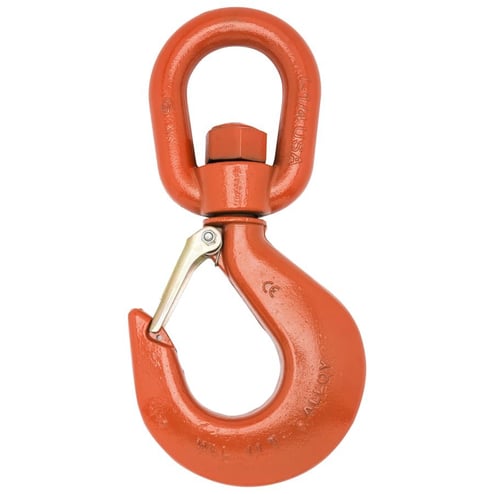

No. 7 Alloy Latched Swivel Hoist Hooks, Bail Size 1 3/32 in, Painted Orange
No. 7 Alloy Latched Swivel Hoist Hooks, Bail Size 1 3/32 in, Painted Orange
SKU: 193-3952415PL
Manufacturer Part Number: 3952415PL
Product Description
Specifications
| Bail Size | 1 3/32 in |
| Distance Between Points of Lift (Headroom) [Nom] | 5 13/16 in |
| Eye Inner Diam [Nom] | 1 1/2 in |
| Eye Outer Size | 2 1/2 in |
| Finish | Painted Orange |
| Height [Nom] | 7 11/32 in |
| Hook Opening | 1 3/32 in |
| Inner Width [Nom] | 1 3/32 in |
| Locking Type | Spring Loaded Latch |
| Material | Alloy Steel |
| Mounting | Swivel Eye |
| Overall Length [Nom] | 7 11/32 in |
| Type | Swivel Hoisting Hook |
| Working Load Limit | 2 ton |
| Wt. | 2.06 lb |
