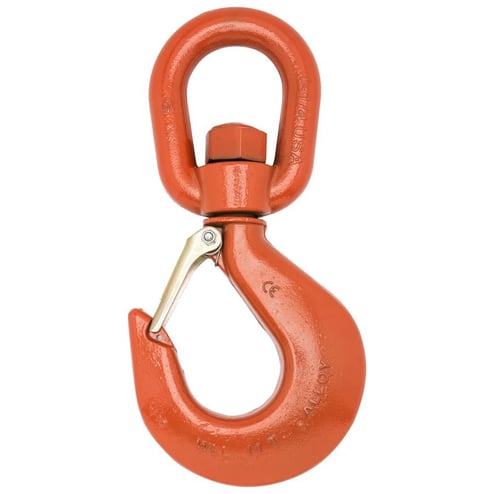

No. 7 Alloy Latched Swivel Hoist Hooks, Bail Size 1 3/8 in, Painted Orange


Product Description

Drop forged carbon steel or alloy and heat treated. All hooks are drilled for integrated latch kits.

Specifications

Bail Size 1 3/8 in
Distance Between Points of Lift (Headroom) [Nom] 8 in
Eye Inner Diam [Nom] 2 in
Eye Outer Size 3 1/2 in
Finish Painted Orange
Height [Nom] 9 17/32 in
Hook Opening 1 3/8 in
Inner Width [Nom] 1 3/8 in
Locking Type Spring Loaded Latch
Material Alloy Steel
Mounting Swivel Eye
Overall Length [Nom] 9 17/32 in
Type Swivel Hoisting Hook
Working Load Limit 5 ton
Wt. 4.5 lb
