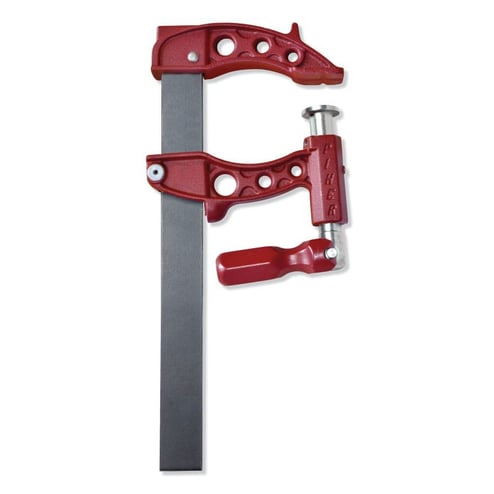

Maxipress F Piston Clamp, 12 in Opening, 5 in Throat Depth, 9,000 N


Product Description

Rolled spring steel bar provides maximum pressure held throughout the whole job. Fixed jaw surface is grooved to achieve maximum grip. Spring activated back brake keeps moving jaw firmly in position. Covered double-threaded screw doubles both pressure and speed with a greasing hole for optimum lubrication. Dismountable, interchangeable easy grip handle.

Specifications

Bar Thickness .3 in
Bar Width 1.4 in
Body Material Nodular Cast Iron Jaws; Heat-Rolled Steel Bar
Handle Type Dismountable; Interchangeable; Nylon and Fiberglass
Load Cap. [Nom] 9,000 N
Opening Size [Max] 12 in
Spindle Diam 1.1 in
Throat Depth [Nom] 5 in
Wt. 5.2 lb
