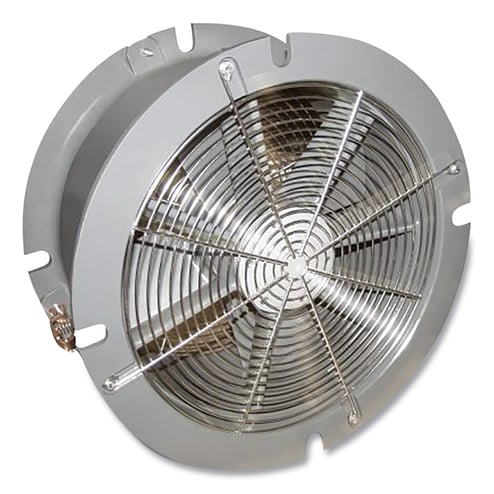

Pneumatic Jet Fan, 20 in dia Inner, 4 Blades, 10500 ft³/min, 60 to 292 SCFM, 40 to 100 psig

037-9518-20

Product Description

Heavy-duty aluminum fan can be used as a blower or exhaust by simply reverse mounting. Compressed air is pushed through a nozzle at the end of each blade creating the fan to propel at speeds up to 10,500 CFM (20-inch model) or 16,000 CFM (24-inch model) at 100 psig quickly and efficiently. Heavy-duty ball bearings are permanently lubricated and sealed for the life of the fan. A spark-resistant fan with recessed handles for easy portability or it can be rolled.

Specifications

Air Consumption [Max] 292 SCFM
Air Consumption [Min] 60 SCFM
Blade Material Heavy-Duty Aluminum
Color Gray
Dia. [Max] 24.75 in
Dia. [Min] 20 in
Fan Type Blower; Exhaust
Height [Nom] 9.875 in
Inlet Pressure [Max] 100 psig
Inlet Pressure [Min] 40 psig
Inlet Size 3/4 in
Inlet Type NPT
Material Aluminum; Stainless Steel Fan Shaft
Mounting Side-Mounted Inlet Connector
No. of Blades 4
Power Source Pneumatic
Speed [Max] 10500 ft³/min
