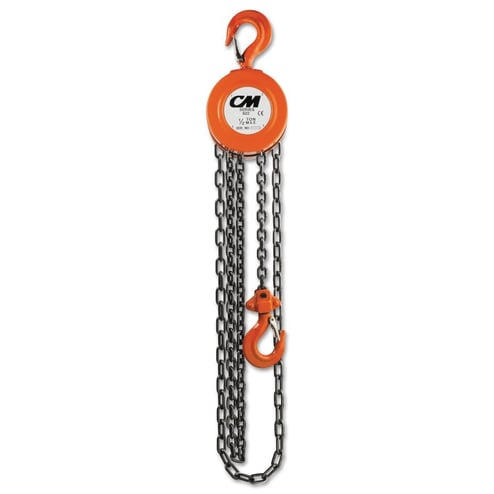

Series 622 Hand Chain Hoist, 1 Ton Capacity, 20 ft Lifting Height, 77 lbf


Product Description

Simple, efficient, economical design. Equipped with hardened load chain for flexibility and long wear. Weston-type load brake requires no lubrication. Hand wheel cover with guide slots minimizes jamming and slipping. Forged swivel hooks with latches reduce twisting of chain and unintentional unhooking of load when chain is slack. Standard hand chain drop is two feet less than lift. Metric rated. Imported.

Specifications

Handle Length [Nom] 18 ft
Head Room [Nom] 13 in
Lifting Height/Take-Up [Nom] 20 ft
Material Steel
Mounting Hook
Operating Type Pull Chain
Pull Force [Max] 77 lbf
Type Hand Chain Hoist
Wt. 53.15 lb
Wt. Cap. [Nom] 1 tons
