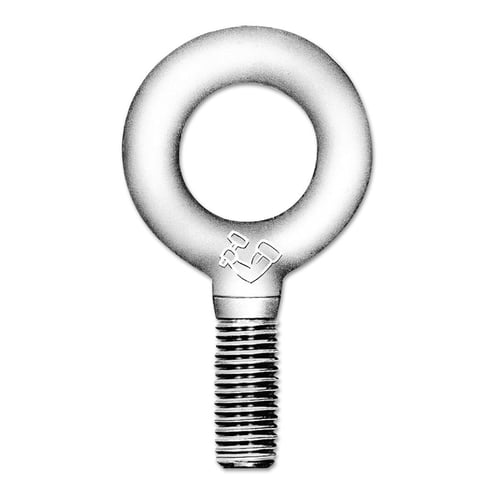

Shoulder Pattern Eye Bolts, 1 in - 8 UNC

193-7100228

Product Description

Drop forged are quenched and tempered for optimum strength. Furnished with Unified National Coarse (U.N.C.) threads. Special threads and lengths.

Specifications

Eye Inner Diam [Nom] 1 13/16 in
Eye Outer Size 3 9/16 in
Load Cap. [Nom] 9500 lb
Load [Max] @ Angle 9,500 lb @ 0 °; 5,000 lb @ 30 °; 3,600 lb @ 45 °; 2,800 lb @ 60 °; 2,400 lb @ 90 °
Material Forged Carbon Steel
Overall Length [Nom] 2 1/2 in
Quantity 1 per box
Thread - TPI or Pitch 1 in - 8 UNC
Type Eye Bolt-Shouldered
Wt. 2.09 lb
