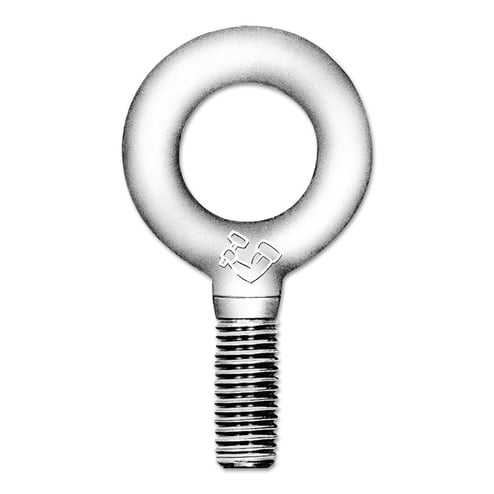

Shoulder Pattern Eye Bolts, 5/8 x 1 3/4
Product Description
Drop forged are quenched and tempered for optimum strength. Furnished with Unified National Coarse (U.N.C.) threads. Special threads and lengths.
Specifications
| Eye Inner Diam [Nom] | 1 3/8 in |
| Eye Outer Size | 2 1/2 in |
| Load Cap. [Nom] | 4000 lb |
| Load [Max] @ Angle | 4,000 lb @ 0 °; 2,000 lb @ 30 °; 1,200 lb @ 45 °; 950 lb @ 60 °; 800 lb @ 90 ° |
| Material | Forged Carbon Steel |
| Overall Length [Nom] | 1 3/4 in |
| Quantity | 1 per box |
| Thread - TPI or Pitch | 5/8 in - 11 UNC |
| Type | Eye Bolt-Shouldered |
| Wt. | 0.59 lb |
