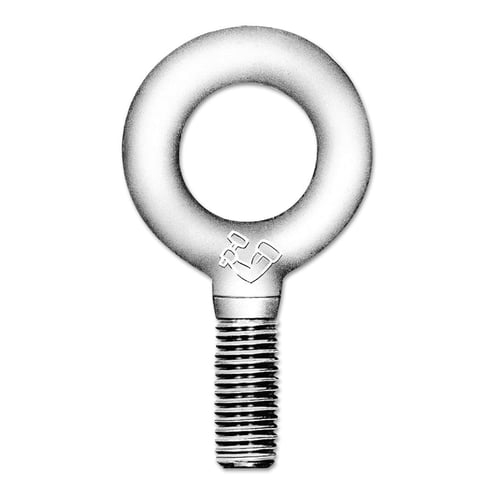

Shoulder Pattern Eye Bolts, 7/8 in - 9 UNC

193-7100227

Product Description

Drop forged are quenched and tempered for optimum strength. Furnished with Unified National Coarse (U.N.C.) threads. Special threads and lengths.

Specifications

Eye Inner Diam [Nom] 1 11/16 in
Eye Outer Size 3 1/4 in
Load Cap. [Nom] 7200 lb
Load [Max] @ Angle 7,200 lb @ 0 °; 3,800 lb @ 30 °; 2,500 lb @ 45 °; 2,000 lb @ 60 °; 1,650 lb @ 90 °
Material Forged Carbon Steel
Overall Length [Nom] 2 1/4 in
Quantity 1 per box
Thread - TPI or Pitch 7/8 in - 9 UNC
Type Eye Bolt-Shouldered
Wt. 1.36 lb
