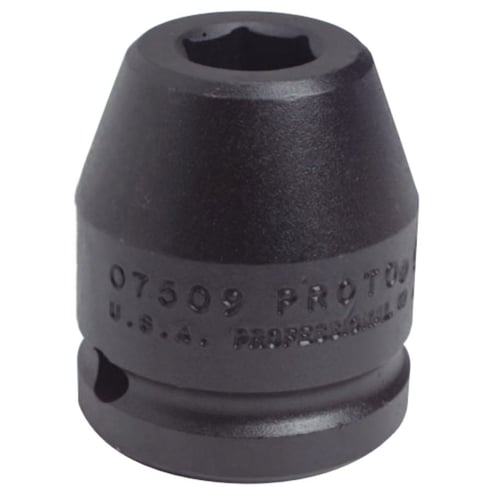

Torqueplus Budd-Wheel Sockets, 3/4 in Drive, 7/8 in, 8 Points


Product Description

Chamfered service ends. Large clearance holes. Concentric openings. Applies more torque to fastener. Reduces risk of fastener rounding. Thru hole and groove accept retaining ring and pin, when securing to power tool. Optimized socket wall thickness.

Specifications

Drive Size [Nom] 3/4 in
Drive Type Square
Finish Black Oxide
Head Width [Nom] 1 3/4 in (opening side); 1 3/4 in (drive side)
Locking Type Pin
Material Forged Alloy Steel
Measuring System Inch
No. of Points 8
Opening Size [Nom] 7/8 in
Overall Length [Nom] 2 in
Tip Type Box
Wt. 0.98 lb
